Quick Details

  • Type: Fencing, Trellis & Gates
  • Model Number:: LX-2008C6D
  • Type:: Fencing,Trellis & Gates
  • Output peak voltate:: 5KV~10KV
  • 0utput low voltate:: 700~1000V
  • Peak current of pulse:: <10A
  • Pulse duration:: ≤0.1S
  • Pulse interval time:: 1s
  • Mas energy of pulse:: <5.0J
  • Power supply:: AC 180v~240V
  • Feature:: Easily Assembled ,durable

Packaging & Delivery

Packaging Details one unit in one box, 3 units in a carton box, Internal box size:45x34x24cm, external carton box size:72x35x44cm.
Delivery Time 3-7 working days after payment received

Product  Discreption


An electric fence system consists of electric wires carrying high voltage electric pulse that provide a non-lethal repulse shock to the intrudor. It is generally used some places such as community, villa, warehouse, industrial ,park, prison, power station, communication base, zoom etc., which can deter and delay intruders to climb over fence

or keep animals inside the fence.



1. Technique Specification:


1.Power supply

AC180V-240V 50Hz

2.System power consumption

15 Watt

3.Operating environment

Temperature:-40 to +50°C

4.Relative humidity


5.Output peak voltage


6.Output low voltage


7.Peak current of pulse


8.Pulse duration


9.pulse interval time


10.Max quantity of electricity of pulse


11.Max energy of pulse



2. Packing details:



450×340×240 (mm)

Net Weight

4.5kg  (Without battery)



Packaging Details

Carton package




 1.Differential voltage output technology: every wire has voltage, have the differential voltage between the two adjacent wires.

 2.LCD&LED indicate the working state and the voltage of on every wire of fence .

 3.High/low voltage switch manually, long-distance equipment auto switch function.

 4.Short circuit, break and tamper alarm, Self-inspection System for equipment fault

 5.Waterproof casing and downward appearance design leading the industry development.

 6.RS 485 bus control, keypad, computer, network and multiple long distance management solution.
 7.DC12V, NC/NO dry contact alarm output, can work with other modern security products.

 8.Set up alarm delaying triggered time freely.

 9.Lanstar electric fence energizer forperimeter security  with CE,ISO certificate

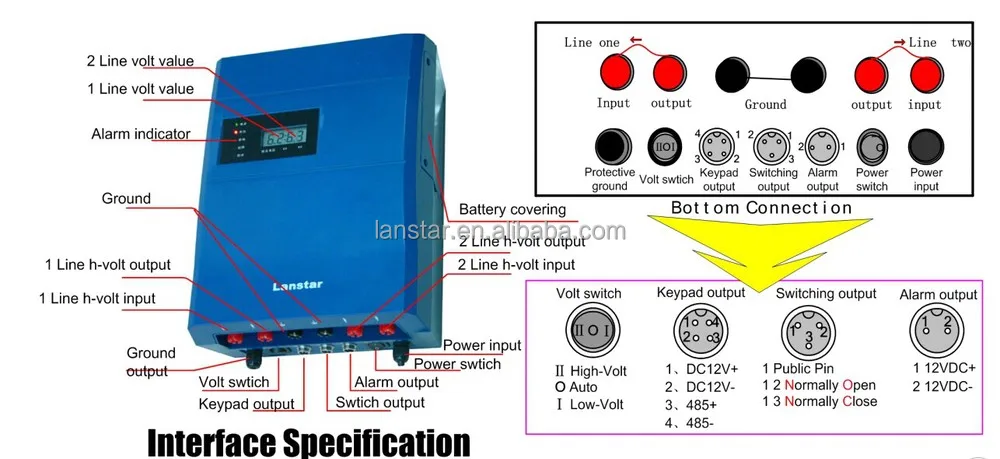

1.Interface specifications:

5.System diagram:

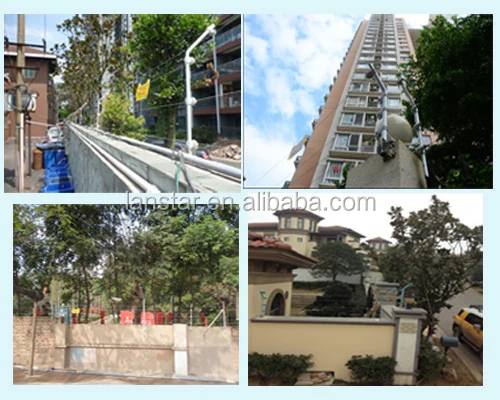

7. Application Fields:






Exhibition pictures:




About US

ShenzhenTechnology Co.,Ltd is a leading manufacturer and supplier of perimeter security electric fence and agriculture solar fencing  in china with excellent technology and products.


Dedicating to provide stable products, solution and professional services, lanstar has offered perimeter security service to thousands of companies and government in more than 20 provinces at domestic market. Besides, our products are distributed to more than 40 countries worldwide. We are a reliable electric fence supplier in China and in the overseas market.


Why choose us



1.Years of experience in electric fencing field

2.Professional staffs for providing different solutions

3.High Quality products and competitive prices

4.Factory warranty with CE certificate and ISO9001:2008 certificate


  Warranty period:   3 years(Excepting artificial damage and vis major)



1. What is electric fence system?


Security Electric fence system (the electric fence energizer and front fence ) is a psychological and physical barrier to detect, deter and delay intruders or wild animals with non-lethal high voltage pulse, which is widely used in farming and security areas.


2. Will my cat be electrocuted?
Cats are perceptive to the aurora of the electric fence. That means they can smell the magnetic field and hear the pulse, there-fore would not normally be shocked by


3. Will it kill my child?
No, the pulse is intermittent. Should a child or for that matter an adult touch the fence the immediate reaction is to pull away.


4. What sort of a deterrent is it?
An excellent deterrent. It is designed to keep unwanted people outside. Lanstar have an amazing track record of very few fences being tampered with since starting in 2003.


5. Will my dog get hurt or electrocuted?
Should the dog touch the fence, they would not normally be badly harmed. If they touch-ed it they generally would not continue.


6. Can a criminal place something like a blanket or rubber mat top of it climb over?
Due to the fence design using springs the wire will be shorted out when touching. This would cause an alarm to sound.


7. Is it possible to connect the fence to my rapid response company?
Yes, most electric fences are connected to a rapid response company.


8. Is it necessary to connect to a rapid response company?
It is not compulsory; however there is a distinct advantage in doing so.


9. What would happen if the wires were cut?
Firstly it would be difficult to cut the live wire without been shocked and if this did happen the fence would immediately go to alarm when wired in series.

10. What sort of voltage is in the fence?
The maximum voltage allowed by law is 10,000 volts. However it is the capacity of the energizer that gives the shock. The capacity is measured in joules not volts.

11. Will my monthly electricity account increase dramatically?
No, an energizer uses very little power, for the average house it could be about R8.00 per month.

12. What happens should there be a power failure?
Lanstar energizers have a battery backup and therefore will continue to work.

13. Do tree branches have an effect on the fence?
It is advisable to keep these trimmed back, however a good energizer is not adversely effected.

14. Do I only switch on the fence when I go out, or at night time?
No, the fence is to remain on day and night every day of the year.

15. What maintenance is required once installed?
Primarily you would cut the tress and grass (if near the wires) every now and then to prevent the fence wires from arcing over when wet.
